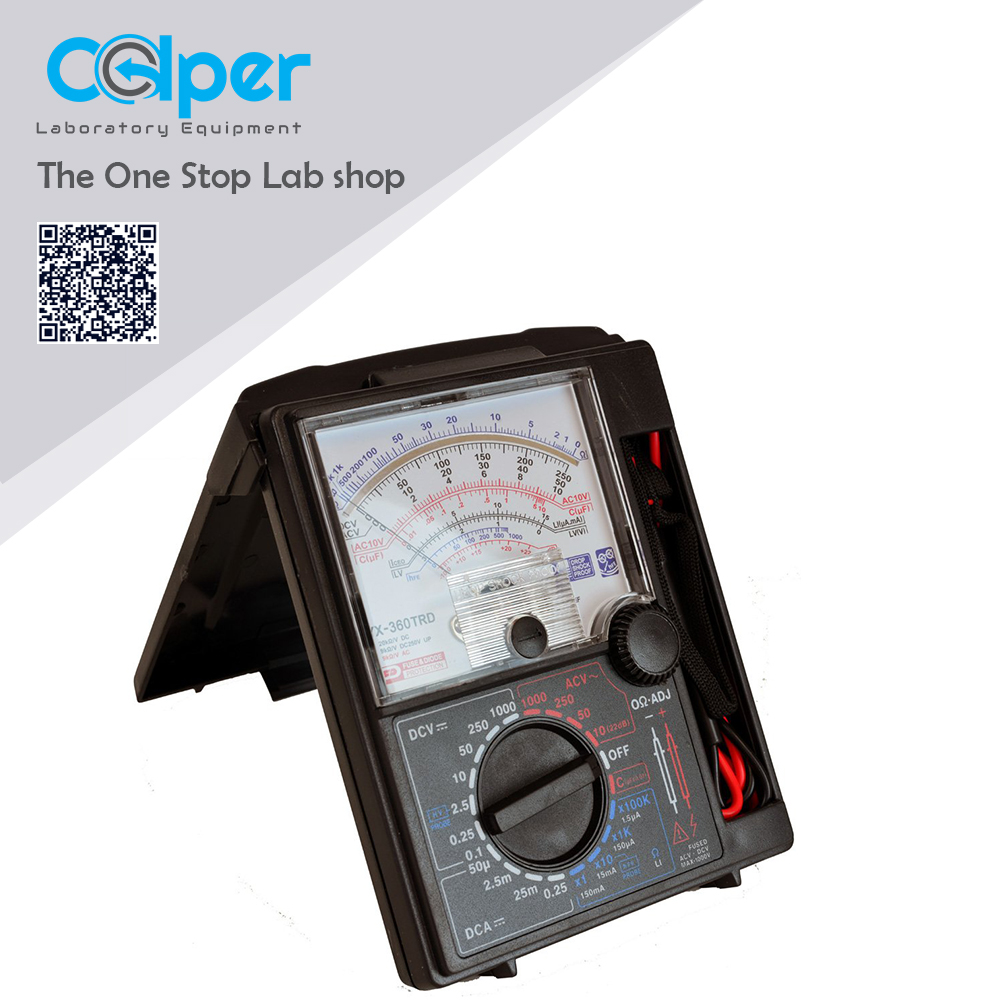

YX-360TRD analog multimeter
Roll over image to zoom in
Rs 1,950.00
- PRODUCT DESCRIPTION
- measure AC&DC voltage,
- DC current,resistance,
- AF level,transistor parameter,load current,load voltage,capacitance,inductance
- This instrument is a portable multimeter designed for measurement of weak current circuits.
- Panel face protection cover which serves also as a stand is employed
- Our technology has made it possible to measure high resistance(up to 200MΩ)with low voltage
- Band meter of drop shock type with high sensitivity has beer employed
- Overload protection circuit up to maximum 230V is provided
- DCV: 0.1/0.25/2.5/10/50/250V ±3%f.s, 1000V ±5%f.s.
- ACV: 10/50/250V ±4%f.s, 1000V ±5%f.s.
- DCA: 50u/2.5m/25m/250mA ±3%f.s.
- OHM: 2K/20K/2MΩ ±3% of arc.
- 200MΩ ±5% of arc.
- dB: -10~+62dB
- L1:1.5u/150u/15m/150mA
- hFE: 0~1000(with TR connector)
- Power supply: R6(1.5V)*2
- PRODUCT DESCRIPTION
- measure AC&DC voltage,
- DC current,resistance,
- AF level,transistor parameter,load current,load voltage,capacitance,inductance
- This instrument is a portable multimeter designed for measurement of weak current circuits.
- Panel face protection cover which serves also as a stand is employed
- Our technology has made it possible to measure high resistance(up to 200MΩ)with low voltage
- Band meter of drop shock type with high sensitivity has beer employed
- Overload protection circuit up to maximum 230V is provided
- DCV: 0.1/0.25/2.5/10/50/250V ±3%f.s, 1000V ±5%f.s.
- ACV: 10/50/250V ±4%f.s, 1000V ±5%f.s.
- DCA: 50u/2.5m/25m/250mA ±3%f.s.
- OHM: 2K/20K/2MΩ ±3% of arc.
- 200MΩ ±5% of arc.
- dB: -10~+62dB
- L1:1.5u/150u/15m/150mA
- hFE: 0~1000(with TR connector)
- Power supply: R6(1.5V)*2
